Grinding and Polishing

Grinding and Polishing in Metallurgy: A Comprehensive Guide

Introduction Grinding and polishing are crucial steps in the metallurgical process, especially when preparing specimens for microscopic examination. These techniques are used to remove surface irregularities, scratches, and deformation, allowing for a clear view of the microstructure of metals and alloys. Understanding the principles, methods, and best practices of grinding and polishing is essential for metallurgists, materials scientists, and anyone involved in quality control and research.

1. Importance of Grinding and Polishing in Metallurgy

In metallurgy, the preparation of samples is a critical part of the analysis. Grinding and polishing are essential because they:

  • Reveal Microstructure: These processes expose the internal structure of the metal, allowing for an accurate evaluation of the grain size, phase distribution, and the presence of any defects.
  • Ensure Accurate Analysis: Properly prepared samples ensure that microscopic examinations, such as optical or electron microscopy, produce reliable results.
  • Support Quality Control: By understanding the material properties, engineers can make informed decisions regarding manufacturing processes, heat treatments, and material selection.

2. Grinding: The First Step in Sample Preparation

Grinding is the process of removing material from the surface of a specimen using abrasive particles. The primary goal is to flatten the specimen and remove any deformation caused by sectioning or previous handling.

  • Coarse Grinding: This stage involves the use of coarse abrasives to remove significant material quickly. Silicon carbide (SiC) or diamond abrasives are commonly used, with grit sizes ranging from 60 to 240. Coarse grinding helps remove the bulk of the sample's surface irregularities.
  • Fine Grinding: After coarse grinding, fine grinding is performed using finer abrasives, typically between 320 and 600 grit sizes. This step smooths the surface and reduces deeper scratches left by the coarse grinding stage, preparing the sample for polishing.

Key Considerations for Grinding:

  • Abrasive Choice: Select the right abrasive based on the hardness and type of the material. Harder materials like hardened steels and ceramics require diamond abrasives, while softer metals like aluminum may use silicon carbide.
  • Lubrication: Use water or oil as a lubricant to reduce heat generation and prevent clogging of the abrasive surface. Lubrication also helps in extending the life of the grinding paper.
  • Pressure and Speed: Consistent pressure and appropriate rotational speed are crucial to ensure uniform grinding and minimize the introduction of new surface deformations.

3. Polishing: Achieving a Mirror-Like Finish

Polishing is the next step after grinding and is designed to remove the finer scratches and achieve a smooth, reflective surface suitable for microscopic analysis. Polishing is usually performed in two stages: rough and final polishing.

  • Rough Polishing: This stage removes the scratches left from fine grinding. Diamond paste or alumina suspensions with particle sizes between 6 and 3 micrometers are commonly used. The goal is to achieve a near-scratch-free surface.
  • Final Polishing: In the final stage, a very fine abrasive (0.05-1 micrometer) is used to produce a mirror-like finish. Common abrasives include colloidal silica or very fine alumina. This step removes the last traces of deformation and scratches, revealing the true microstructure of the specimen.

Key Considerations for Polishing:

  • Polishing Cloths: Choose polishing cloths based on the abrasives used and the desired surface finish. Synthetic silk, velvet, and napless cloths are popular choices.
  • Suspension Use: Proper application of suspensions or pastes is vital to maintain an even distribution of abrasive particles.
  • Avoid Contamination: Clean the sample thoroughly between each polishing step to avoid cross-contamination of abrasive particles, which can lead to unwanted scratches.

4. Common Challenges and Solutions

  • Scratches and Artifacts: Often caused by improper grinding, cross-contamination, or inconsistent pressure. Ensure correct abrasive selection and cleaning between steps.
  • Edge Rounding: Results from uneven grinding or polishing pressures. Use mounting techniques to support edges or adjust pressure.
  • Heat Damage: Excessive heat during grinding can alter the microstructure of the specimen. Utilize adequate cooling and moderate speeds to mitigate this.

5. Advanced Techniques: Automated Grinding and Polishing

Automation in grinding and polishing has revolutionized metallurgical sample preparation, enhancing precision, repeatability, and efficiency.

  • Programmable Machines: These systems allow for precise control over grinding and polishing parameters, ensuring consistent results across multiple samples.
  • Multi-Stage Preparation: Automated setups can perform coarse grinding, fine grinding, and multiple polishing stages without manual intervention, saving time and reducing operator fatigue.

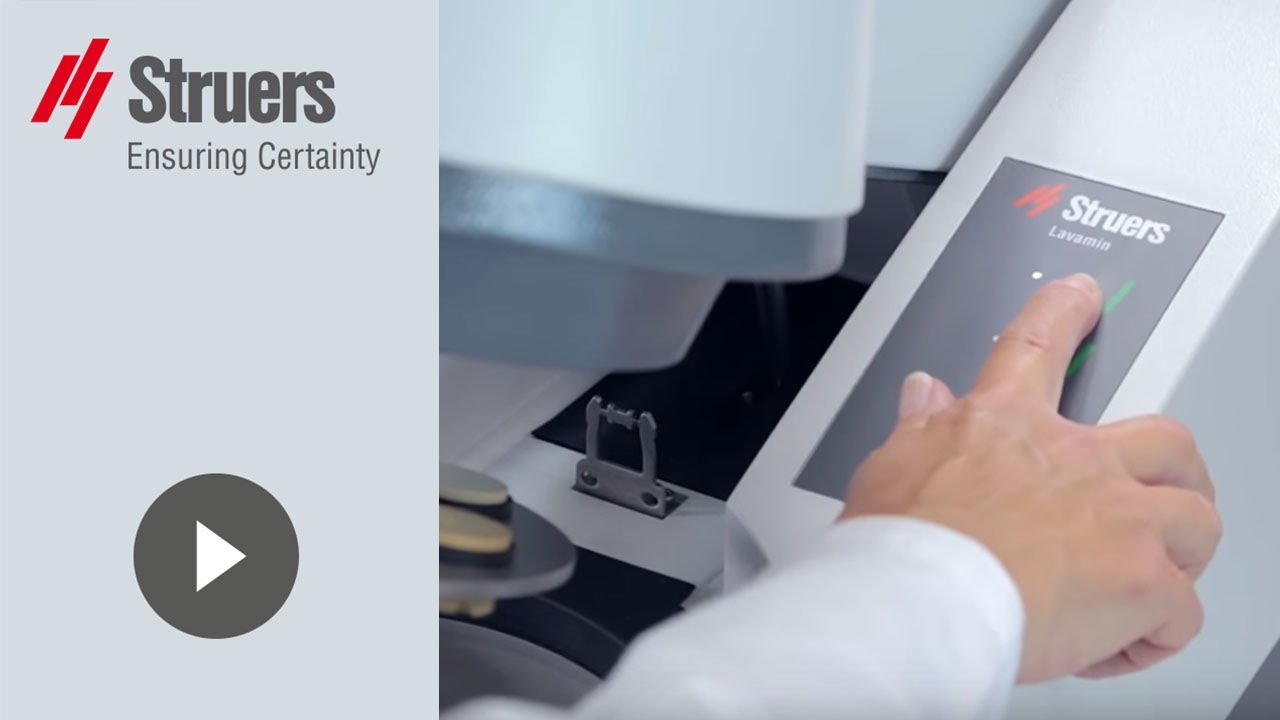

GRINDING AND POLISHING SOLUTIONS FOR EVERY LAB SETUP

At Struers, we offer a comprehensive range of grinding and polishing solutions tailored to fit every lab setup, from manual to fully automatic systems. Our equipment is engineered to streamline your sample preparation process, delivering precision and consistency to meet your unique preparation goals. Versatile Solutions for Every Need Whether you’re handling routine tasks or complex metallurgical analyses, our grinding and polishing solutions are designed to support any lab environment. From small research labs to large industrial facilities, our equipment can be customized to match your throughput requirements and preparation standards.

Key Features and Benefits

  • Optimized Processes: All our grinding and polishing machines come with core functionalities designed to enhance your workflow. Advanced control options, programmable settings, and intuitive interfaces ensure the highest levels of safety, efficiency, and ease of use.
  • Scalable to Your Needs: Our equipment portfolio includes solutions for every scale—manual setups for low-volume needs, semi-automatic systems for flexible use, and fully automated machines for high-throughput environments.
  • Complete Support Services: Along with our equipment, we provide extensive support services, including technical assistance, maintenance, and training, ensuring your lab remains operational at peak performance.
  • Comprehensive Consumables Range: Access a wide variety of consumables, including abrasives, polishing cloths, and suspensions, to meet the demands of any material preparation task.
  • Extensive Method Database: Benefit from our vast library of preparation methods, helping you optimize your processes for any material type, from hard metals to delicate alloys.

Why Choose Our Solutions?

  1. User-Friendly Designs: Simplify your sample preparation with ergonomic equipment that minimizes user strain and maximizes efficiency.
  2. Safety First: Built-in safety features such as automatic shutoffs, splash guards, and protective covers ensure a secure working environment.
  3. High Throughput Performance: Achieve consistent, high-quality results even under heavy workload conditions, making our systems ideal for both research and production settings.
  4. Sustainable Practices: Our grinding and polishing systems are designed with sustainability in mind, offering energy-efficient operations and minimal consumable waste.

Everything Your Lab Will Ever Need

Backed by decades of experience in material science and metallography, our grinding and polishing solutions deliver unmatched quality and reliability. With a complete range of equipment, consumables, and expert support, your lab is fully equipped to meet every preparation challenge with confidence.Choose our grinding and polishing solutions and experience a new level of precision, productivity, and performance in your lab.
