Drop Tower Impact Testing System

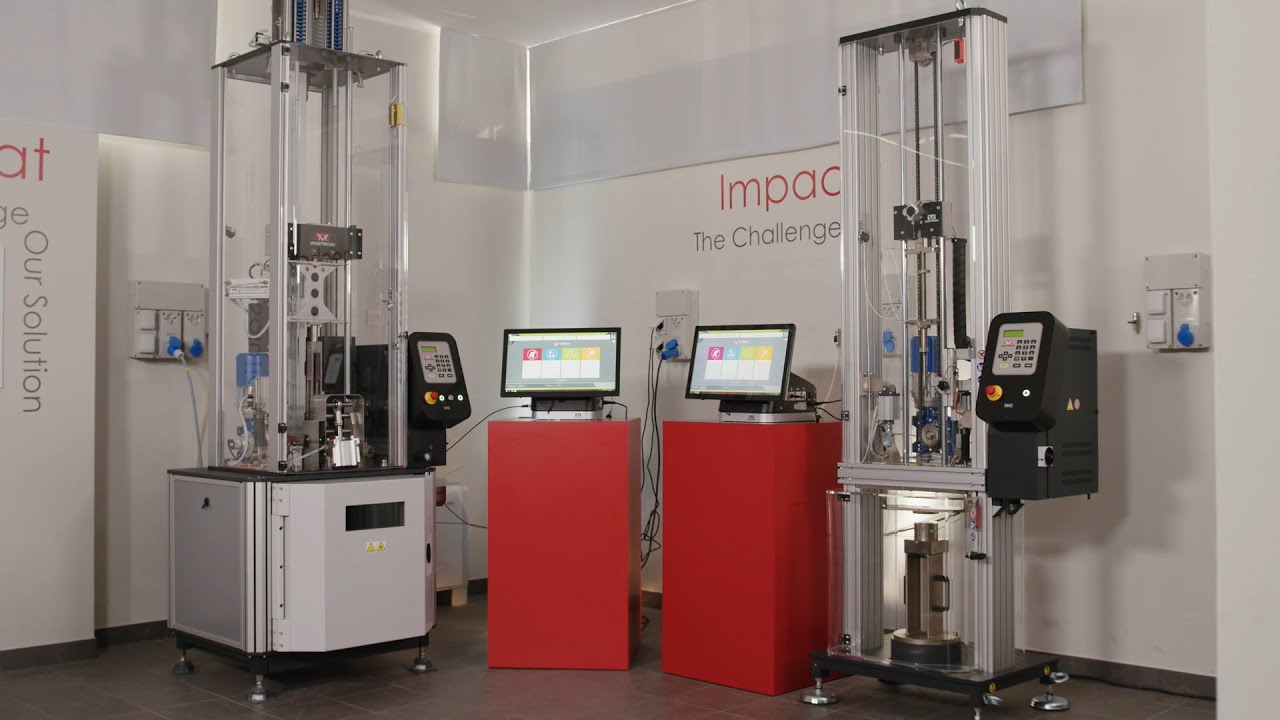

Instron 9400 Series: The Next Generation Drop Weight Impact Testing Machine

The Instron 9400 Series represents the next generation of drop weight impact testing machines, designed to evaluate the energy required to break or damage a variety of materials. In drop weight testing, a defined weight is released from a specific height, striking a specimen or component with controlled impact energy and velocity. This method is crucial for understanding material performance under impact conditions.

Overview of the Instron 9400 Series

The Instron 9400 Series is engineered to comply with all major impact testing standards, covering a wide energy range from 0.3J to 1800J. This versatility makes it suitable for various applications, including testing polymers, composites, and other materials used in critical industries such as automotive, aerospace, and consumer goods. The 9400 Series supports several common drop weight impact test methods, each designed to evaluate different aspects of material performance:

1. Puncture Resistance Test:
   This test determines a material's ability to resist puncture forces, providing insights into its durability and toughness. The results are vital for applications where materials are subjected to sharp objects or significant stress.
2. Compression After Impact (CAI) Test:
   The CAI test assesses the residual strength of composite materials after they have been subjected to impact. This method is crucial for evaluating the integrity of materials used in structural applications, ensuring that they maintain their load-bearing capabilities after sustaining damage.
3. Tensile Impact Test:
   This test evaluates a material's response to sudden tensile forces. It helps understand how materials behave under dynamic loading conditions, which is essential for applications involving shock or impact.
4. Three-Point Bending Test:
   This method assesses the bending strength and flexibility of materials. It is particularly useful for evaluating polymers and composites, providing data on load-deflection curves and overall material toughness.
5. Wedge Peel Impact Test:
   The wedge peel test measures the adhesion and toughness of layered materials. This test is especially relevant for assessing the performance of adhesives and coatings, which are critical in applications ranging from packaging to construction.

Compliance with International Standards

The Instron 9400 Series is designed to meet the most recognized ISO and ASTM standards for impact testing of plastics. These include:

• ASTM D3763: Multi-axial impact test for evaluating the impact resistance of plastic materials.
• ISO 6603: Puncture resistance test method that determines a material's ability to withstand puncturing forces.
• ASTM D7136: CAI test method that assesses the residual strength of composite materials after impact.
• ISO 11343: Wedge peel impact test method for measuring the toughness of layered materials.
• ISO 8256: Tensile impact test method that evaluates the response of materials to dynamic tensile loads.

These standards ensure that testing results are reliable, consistent, and comparable across different laboratories and industries.

Advanced Features of the 9400 Series

1. User-Friendly Interface:
   The 9400 Series features an intuitive user interface, enabling operators to set up tests quickly and efficiently. The software is designed for ease of use, making it accessible for technicians at all skill levels.
2. Real-Time Data Acquisition and Analysis:
   With advanced data acquisition capabilities, the 9400 Series provides real-time feedback during testing. This allows operators to monitor performance metrics as they occur, facilitating immediate adjustments and enhanced accuracy.
3. Flexible Test Configurations:
   The machine can be easily configured for various test methods, accommodating different specimen sizes and geometries. This flexibility is crucial for laboratories that require adaptability in their testing processes.
4. Robust Safety Features:
   Safety is a top priority with the Instron 9400 Series. The machine includes multiple safety features, such as protective enclosures and interlocks, to ensure operator safety during testing. These features minimize the risk of accidents associated with high-energy impact testing.
5. Comprehensive Reporting Capabilities:
   The software includes advanced reporting features, enabling users to generate detailed test reports that summarize results and analysis. This functionality is essential for quality control and compliance documentation.
